參數介紹

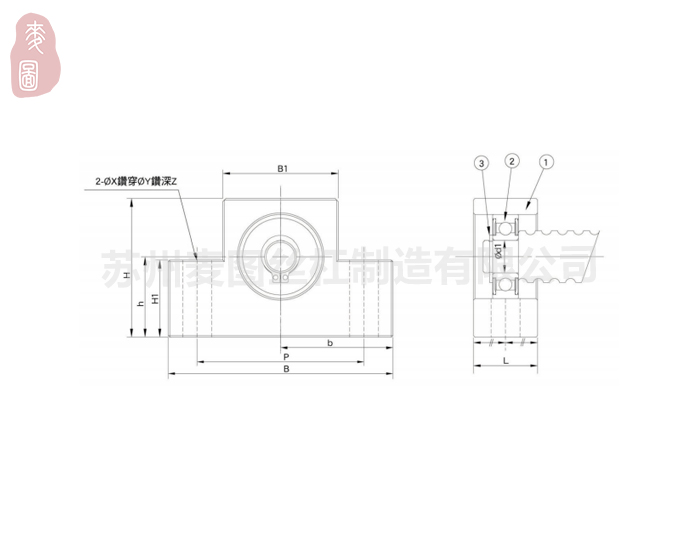

型號 |
軸徑 |
L |
B |
H |
b |
h |
B1 |
H1 |
P |
X |
Y |
Z |
使用軸承 |
使用C型扣環 |
±0.02 |
±0.02 |
|||||||||||||
EF06 |
6 |
12 |
42 |
25 |
21 |
13 |
18 |
20 |
30 |
5.5 |
9.5 |
1 1 |
606ZZ |
S 06 |
EF08 |
6 |
14 |
52 |
32 |
26 |
17 |
25 |
26 |
38 |
6.5 |
1 1 |
12 |
606ZZ |
S 06 |
EF10 |
8 |
20 |
70 |
43 |
35 |
25 |
36 |
24 |
52 |
9 |
- |
- |
608ZZ |
S 08 |
EF12 |
10 |
20 |
70 |
43 |
35 |
25 |
36 |
24 |
52 |
9 |
- |
|
6000ZZ |
S 10 |

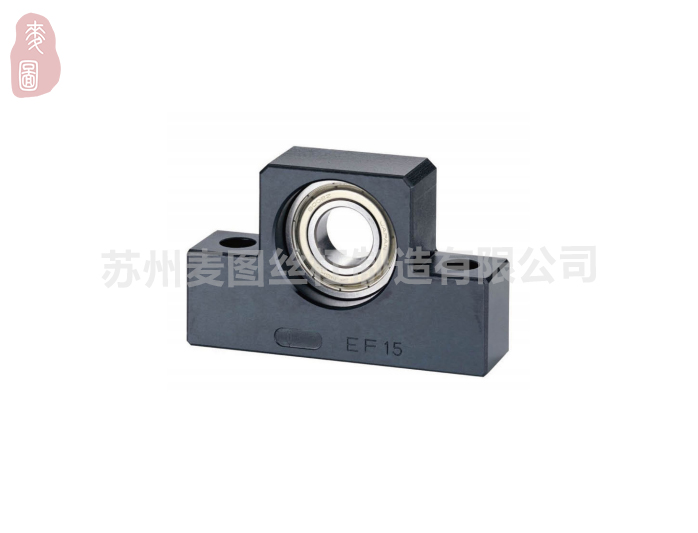

EF15 |
15 |
20 |
80 |
49 |
40 |
30 |
41 |
25 |
60 |
9 |
- |
- |
6002ZZ |
S 15 |
EF20 |
20 |
26 |
95 |
58 |
47.5 |
30 |
56 |
25 |
75 |
11 |
- |
- |
6204ZZ |
S 20 |
編號/Park No. |
產品名稱/Port nome |
數量/Qty |
1 |
軸承座本體/Housing |
1 |
2 |
軸承/Bearing |
1 組/1 set |
3 |
C型扣/Snop ring |
1 |
